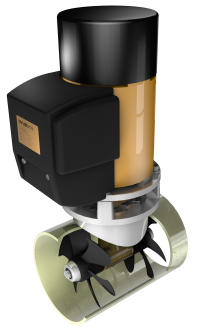

S120 24V / 185mm BOW THRUSTER

Operating time 3 minutes continuous operation	Typical Boat Size 12 - 17 / 39' - 56' (m / ft)	Output Power 8 kW
Weight 30.3kg	Propulsion System Twin 6-blade composite propellers	Tunnel Diameter 185 / 7.3 (mm / in)
DC system 24V	Thrust Force at 21V 120 / 265 (kgf / Lbs)

Made of seawater resistant bronze, all shaft and bearing surfaces are CNC machined to 2/1000mm accuracy
Its hydrodynamic shape ensures low water resistance and thus less cavitation
Heavy-duty seal designed for separation of two media, combining excellent contamination protection and supreme sealing performance
Crucial vibration damping capacity of the seal which reduces harmful propeller-generated vibrations
Easy to replace anti-electrolysis aluminium anode
Hardened spiro-conical gears, developed for us by leading German manufacturers. The precise elemental geometry leads to a quieter running of the gear sets and longer lifetime
EMS S120 features the most powerful DC electric motor fitted on a 185mm bow thruster system. Ideal solution for boats up to 17m in length, whereby the greatest amount of thrust force in a relatively compact tunnel diameter is required
Our skewback six-blade propellers generate less cavitation, which, in addition to the carefully chosen hydroacoustic design, results in great noise reductions
With blade tips swept back against the direction of rotation, while bending rearward in reference to the longitudinal axis, our propellers generate “ahead” thrust which almost coincides with “reverse” thrust, i.e. the thruster system is reliable for maneuvering in both directions

Click on the image for larger view

Voltage (V)	24 V
Thrust (kgf)	120kgf
Power (kW)	8
Motor, reversible D.C.	Yes
Internal tunnel diameter (mm)	185
Weight (kg)	30.3
Max. operating time (minutes)	4

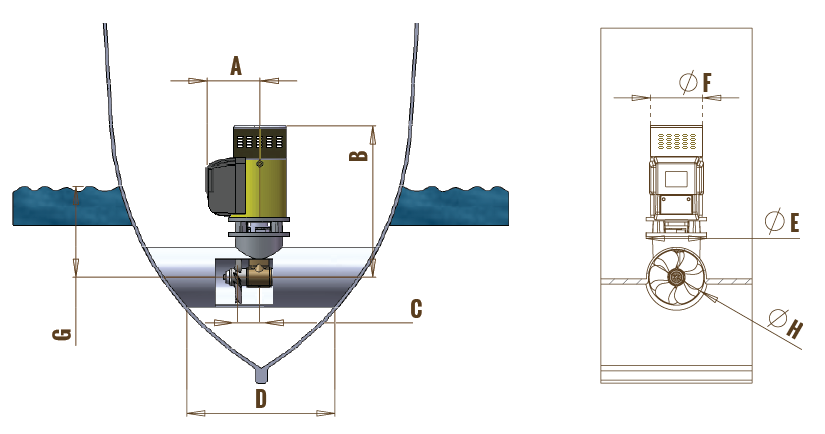

Size A in mm, see drawing	134
Size B in mm, see drawing	454
Size C in mm, see drawing	140
Size D min./max. in mm, see drawing	400/800
Size E in mm, see drawing	200
Size F, diameter in mm, see drawing	158
Size G min. in mm, see drawing	185
Size H, diameter in mm, see drawing	185
