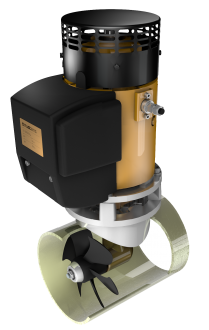

S230 24V / 300mm BOW THRUSTER

Gearleg:

• Made of seawater resistant bronze, all shaft and bearing surfaces are CNC machined to 2/1000mm accuracy
• Its hydrodynamic shape ensures low water resistance and thus less cavitation
• Heavy-duty seal designed for separation of two media, combining excellent contamination protection and supreme sealing performance
• Crucial vibration damping capacity of the seal which reduces harmful propeller-generated vibrations
• Easy to replace anti-electrolysis aluminium anode
• Hardened spiro-conical gears, developed for us by leading German manufacturers. The precise elemental geometry leads to a quieter running of the gear sets and longer lifetime

Propulsion System:

• EMS S230 is a brand-new thruster in our product range. With its powerful 11.2 kW DC engine, this thruster system is specially designed to deliver the overwhelming 230 kgf of thrust in a 300mm tunnel.
• Our innovative bronze propellers are specially designed to minimize cavitation at the 300mm diameter, for optimal thrust and a more silent operation.
