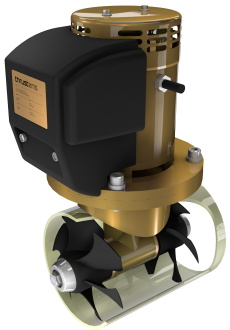

P60 12V / 150mm BOW THRUSTER

Operating time 12 minutes continuous operation	Typical Boat Size 8.5 - 13 / 28 - 43 (m / ft)	Output Power 3.0 kW
Weight 20.3kg	Propulsion System Twin 6-blade composite propellers	Tunnel Diameter 150 / 5.9 (mm / in)
DC system 12V	Thrust Force at 10.5V 60 / 132 (kgf / Lbs)

Made of seawater resistant bronze, all shaft and bearing surfaces are CNC machined to 2/1000mm accuracy
Its hydrodynamic shape ensures low water resistance and thus less cavitation
Heavy-duty seal designed for separation of two media, combining excellent contamination protection and supreme sealing performance
Gear-damaging vibrations caused by the action of the twin propellers are minimized due to crucial vibration damping capacity of the seals
Easy to replace anti-electrolysis aluminium anode
Hardened spiro-conical gears, developed for us by leading German manufacturers. The precise elemental geometry leads to a quieter running of the gear sets and longer lifetime
State-of-the art twin propeller system which maximizes generated thrust even in the small 150mm tunnel size
The small tunnel diameter ensures perfect fit into the hull of relatively smaller boats
The small tunnel diameter, combined with the compact size of this twin propeller model makes it ideal for performance-oriented boat-owners with limited installation space

Click on the image for larger view

Voltage (V)	12 V
Thrust (kgf)	60kgf
Power (kW)	3
Motor, reversible D.C.	Yes
Internal tunnel diameter (mm)	150
Weight (kg)	20.3
Max. operating time (minutes)	12

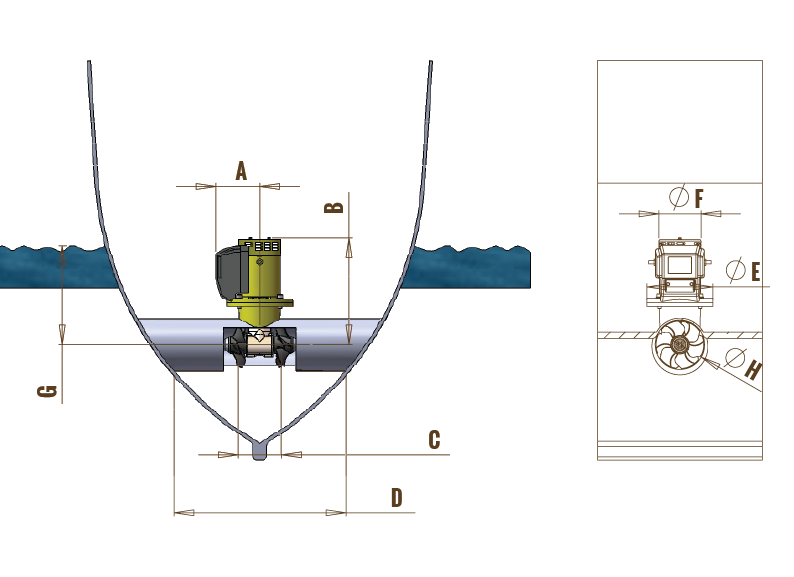

Size A in mm, see drawing	134
Size B in mm, see drawing	412
Size C2 in mm, see drawing	140
Size D min./max. in mm, see drawing	370/740
Size E in mm, see drawing	200
Size F, diameter in mm, see drawing	158
Size G min. in mm, see drawing	150
Size H, diameter in mm, see drawing	150
